heavy-duty Powder Conveyor System transfers zinc

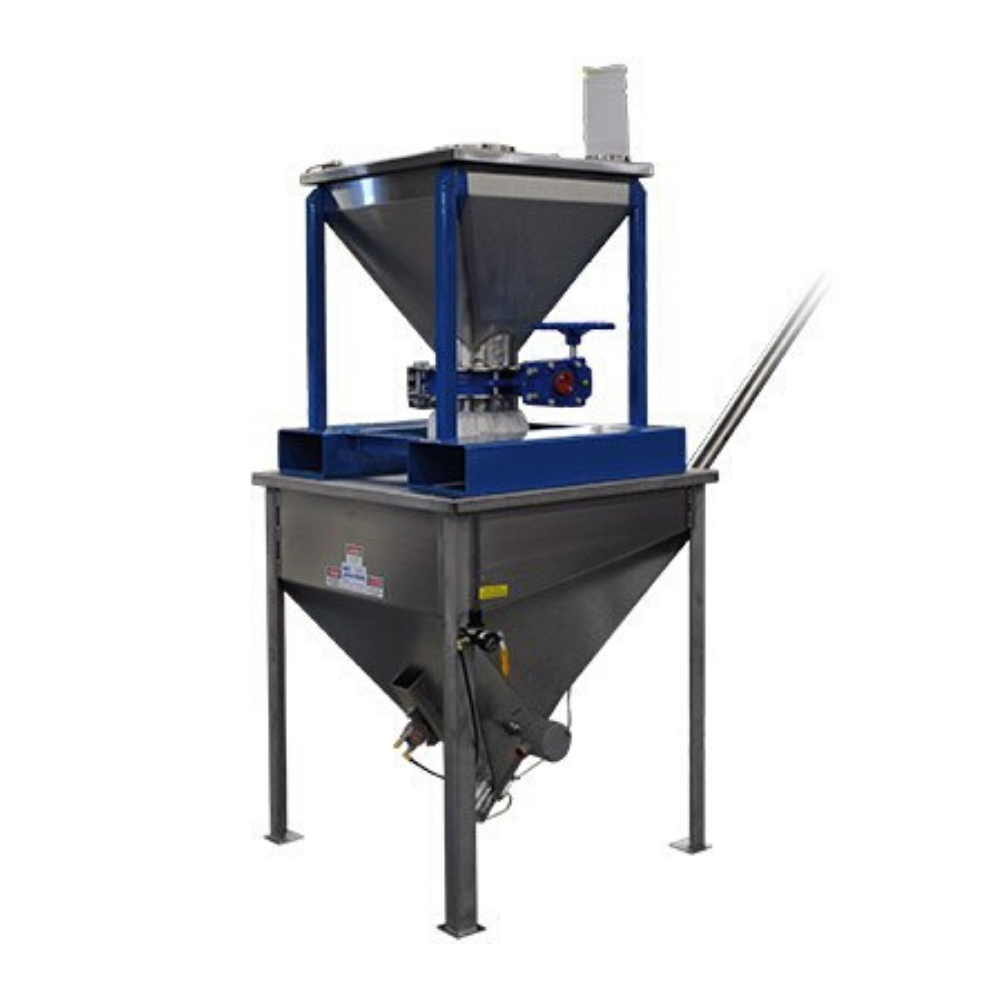

The Zinc Powder Conveyor from AFC is designed to convey zinc powder having a bulk density of 157 lbs. per cubic foot at a controllable rate of up to 24 cubic feet per hour. Material is loaded into the AFC Model #25R(HD)-25 (2 diameter x 25 feet long) heavy-duty series conveyor via a special 8.5 portable Flow Free surge hopper with a diameter flow control butterfly valve.

The surge hopper is positioned directly above the AFC 8.5 True Flow hopper and connected via a flexible sleeve to ensure a dust-tight interface. An exhaust sock is provided to address the air displacement during loading.

The zinc powder is conveyed at a 45-degree angle to an elevation of 18′ 6″ to an existing 60″ diameter vibratory screener. A variable frequency drive is utilized to control the feed rate to the screener. The AFC True Flow hopper incorporates a low-level switch and pneumatic vibrator. The AFC system incorporates an explosion-proof drive and with Nema-4/12 controls which are remotely mounted. Both drive and controls are Atex Approved.

AFC provided a total conveying system, including all controls and drive support mast, and has designed a large number of conveying systems for this US-based company. This zinc powder system continues to operate as specified in Ireland.
